Пятиосивые станки с ЧПУ

1)

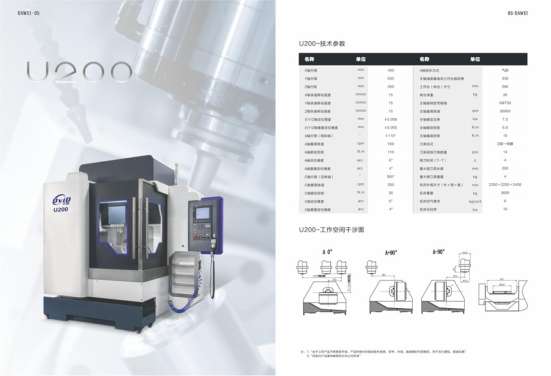

U200-Technical parameters:
X-axis stroke:400mm
Y-axis stroke:650mm
Z-axis stroke:250mm
X-axis fast moving speed:15m/min
Y-axis has a fast movement speed:15m/min
Z-axis fast movement speed:15m/min
 X / Y / Z axis positioning accuracy:±0.008mm
Repeat positioning accuracy of the X / Y / Z axis:±0.005mm
A-axis stroke (tilt axis):±110°
The highest speed of axis A:100rpm
Rated torque of axis A:110Nm
Positioning accuracy of axis A:6″ arc
A-axis repeat positioning accuracy:4″  arc
C-axis stroke (rotary shaft):360°
C axis highest speed:200rpm
Rated torque of C axis:30Nm
C axis positioning accuracy:6″ arc
C-axis repeat positioning accuracy:4″ arc

Axis- A brake mode:air brake
The highest distance from the spindle end surface to the working surface:330
Size of the workbench (turntable):260mm
Model and specification of rotary table bearing spindle cone handle:30kg
Maximum spindle speed spindle rated power:NBT30
The main shaft is rated torque:30000rpm
Maximum torque of spindle:7.5kw
magazine tool form:type-D one serv
Number of tools held in the knife library:14pcs
Tool change time (T-T):4s
Maximum loading tool length:200mm
Maximum loading tool weight:4kg
Appearance size of machine tool (length, width and height
Machine tool weight:3000kg
machine tool air demand:6kg/cm3
Total power of machine tool:10kw
2)

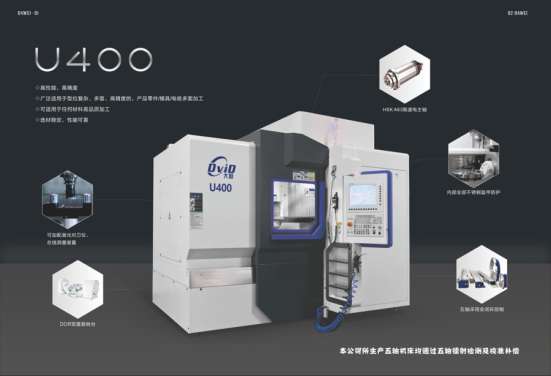

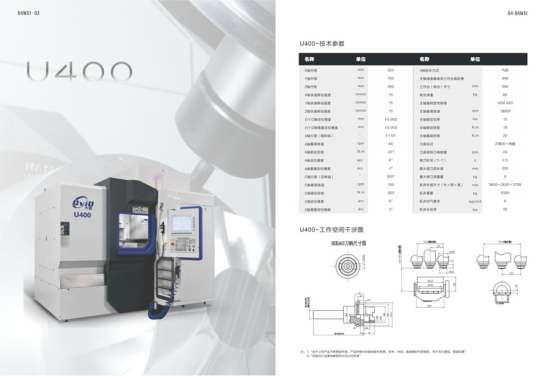

U400-Technical parameters:
X-axis stroke:500mm
Y-axis stroke:700mm
Z-axis stroke:350mm
X-axis fast moving speed:15m/min
Y-axis has a fast movement speed:15m/min
Z-axis fast movement speed:15m/min
 X / Y / Z axis positioning accuracy:±0.005mm
Repeat positioning accuracy of the X / Y / Z axis:±0.003mm
A-axis stroke (tilt axis):±110°
The highest speed of axis A:60rpm
Rated torque of axis A:421Nm
Positioning accuracy of axis A:6″ arc
A-axis repeat positioning accuracy:4″  arc
C-axis stroke (rotary shaft):360°
C axis highest speed:150rpm
Rated torque of C axis:203Nm
C axis positioning accuracy:6″ arc
C-axis repeat positioning accuracy:4″ arc

Axis- A brake mode:air brake
The highest distance from the spindle end surface to the working surface:490
Size of the workbench (turntable):350mm
Model and specification of rotary:HSK A63
table bearing spindle cone handle:80kg
Maximum spindle speed:18000rpm
Maximum torque of spindle:15kw
magazine tool form:type-tool-arm ,one serv
Number of tools held in the knife library:24pcs
Tool change time (T-T):2.5s
Maximum loading tool length:250mm
Maximum loading tool weight:8kg
Appearance size of machine tool (length, width and height
Machine tool weight:6300kg
machine tool air demand:6kg/cm3
Total power of machine tool:30kw

3)
U200-T Technical parameters:
X-axis stroke:600mm
Y-axis stroke:400mm
Z-axis stroke:300mm
X-axis fast moving speed:48m/min
Y-axis has a fast movement speed:48m/min
Z-axis fast movement speed:48m/min
 X / Y / Z axis positioning accuracy:±0.008mm
Repeat positioning accuracy of the X / Y / Z axis:
